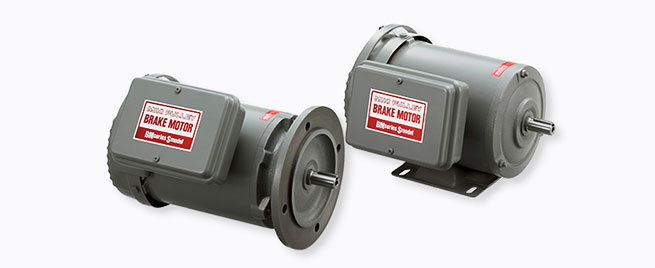

BMS Models

Specifications

Available Options

Downloads

[Specifications]

Model	Motor		Brake								Rotating part moment of inertia [kg･m²]	Allowable braking energy rate Pbaℓ[W]	Total braking energy [J]	Operating time			Mass [kg]
	Frame number	Output [kW] 4P	torque T [N･m]	Coil(at20℃)				Heat resistance class	Gap					Armature pull-in time ta[s]	Coastdown time
	Frame number	Output [kW] 4P	torque T [N･m]	Voltage [V]	Current [A]	Resistance [Ω]	Wattage [W]	Heat resistance class	Specified value [mm]	Limit value [mm]				Armature pull-in time ta[s]	Simulta- neous off[s]	DC separate switching off[s]
BMS-024-NHBN	63	0.2	2	DC90	0.20	440	18	B	0.15～0.25	0.40	0.8×10^-3	18	3.5×10⁷	0.04	0.1	0.08	7.5
BMS-024-NHFN	63	0.2	2	DC90	0.20	440	18	B	0.15～0.25	0.40	0.8×10^-3	18	3.5×10⁷	0.04	0.1	0.08	8.5
BMS-044-NHB	71	0.4	4	DC90	0.28	324	25	B	0.15～0.25	0.40	1.5×10^-3	26.2	7.0×10⁷	0.05	0.1	0.08	10
BMS-044-NHF	71	0.4	4	DC90	0.28	324	25	B	0.15～0.25	0.40	1.5×10^-3	26.2	7.0×10⁷	0.05	0.1	0.08	11
BMS-074-HPB	80	0.75	8	DC90	0.33	270	30	B	0.20～0.30	0.50	4.3×10^-3	29.4	12.5×10⁷	0.05	0.14	0.09	16.5
BMS-074-HPF	80	0.75	8	DC90	0.33	270	30	B	0.20～0.30	0.50	4.3×10^-3	29.4	12.5×10⁷	0.05	0.14	0.09	19
BMS-154-HPB	90	1.5	15	DC90	0.34	261	31	B	0.20～0.30	0.60	8.1×10^-3	45.8	20.0×10⁷	0.11	0.15	0.09	23
BMS-154-HPF	90	1.5	15	DC90	0.34	261	31	B	0.20～0.30	0.60	8.1×10^-3	45.8	20.0×10⁷	0.11	0.15	0.09	26

※Totally enclosed fan cooled motors in conformance with JIS C 4210 for 0.2kW･0.4kW motors, and JIS C 4213 for motors over 0.75 kW.（made by Hitachi Industrial Equipment Systems）

※Motor input power sources are three phase, AC 200V/50Hz、AC200V・AC220V/60Hz.

※For the brake motor's braking frequency tolerance, please refer to the design's points for confirmation pages. More detailed frequency data depends on load conditions, so please confirm through selective calculation.

[Dimensions 1]

Model	Dimensions of part
Model	L	R	A	B	D	KL	H	P	C	Ｆ	E	N	M	G	Z	S	W	U	T	Q	V
BMS-024-NHBN	215	103	112	79	130	115	128	134	63	40	50	100	130	3.2	7×21	11 h6	－	1	－	23	－
BMS-044-NHB	244	120	124	87	145	141	143.5	150	71	45	56	115	140	3.2	7×20	14 j6	5	3	5	30	M5×0.8length18
BMS-074-HPB	299.5	140	150.5	97	163	148	161.5	168	80	50	62.5	125	160	3.2	10×25	19 j6	6	3.5	6	40	M6×1length20
BMS-154-NPB	329	168.5	160.5	114.5	182	144	178	188	90	62.5	70	155	170	10	10	24 j6	8	4	7	50	M6×1length20

[Dimensions2]

Model	Dimensions of part
Model	L	LR	LL	D	KL	LC	Y	LB	LA	LE	LG	LZ	S	W	U	T	Q	V
BMS-024-NHFN	241	23	218	130	115	160	70	110	130	3.5	8	10	11 h6	－	1	－	23	－
BMS-044-NHF	265	30	235	145	134.5	160	79	110	130	3.5	10	10	14 j6	5	3	5	30	M5×0.8length18
BMS-074-HPF	305	40	265	163	142	200	88	130	165	3.5	12	12	19 j6	6	3.5	6	40	M6×1length20
BMS-154-HPF	349	50	299	176	144	200	98	130	165	3.5	12	12	24 j6	8	4	7	50	M6×1length20

Options of BMS Models

**Models with Motor Terminal Blocks Mounted in Reverse *Made-to-order Parts**

Option symbol: G
There may be cases where the terminal block for the motor cannot be attached at the position and dimensions specified for standard models due to where the brake motor is attached. G type models are designed with such cases in mind. Check the dimensions diagram for the position of the terminal block on these G type models.

**Models Equipped with BEW2-2H Brake Rectifiers *Made-to-order Parts**

Option symbol: 2H
These models can be equipped with separate DC switching power supplies (BEW2-2H) for applications requiring a faster response using brake motors used in combination with inverters and other parts.
